Specifications[edit | edit source]

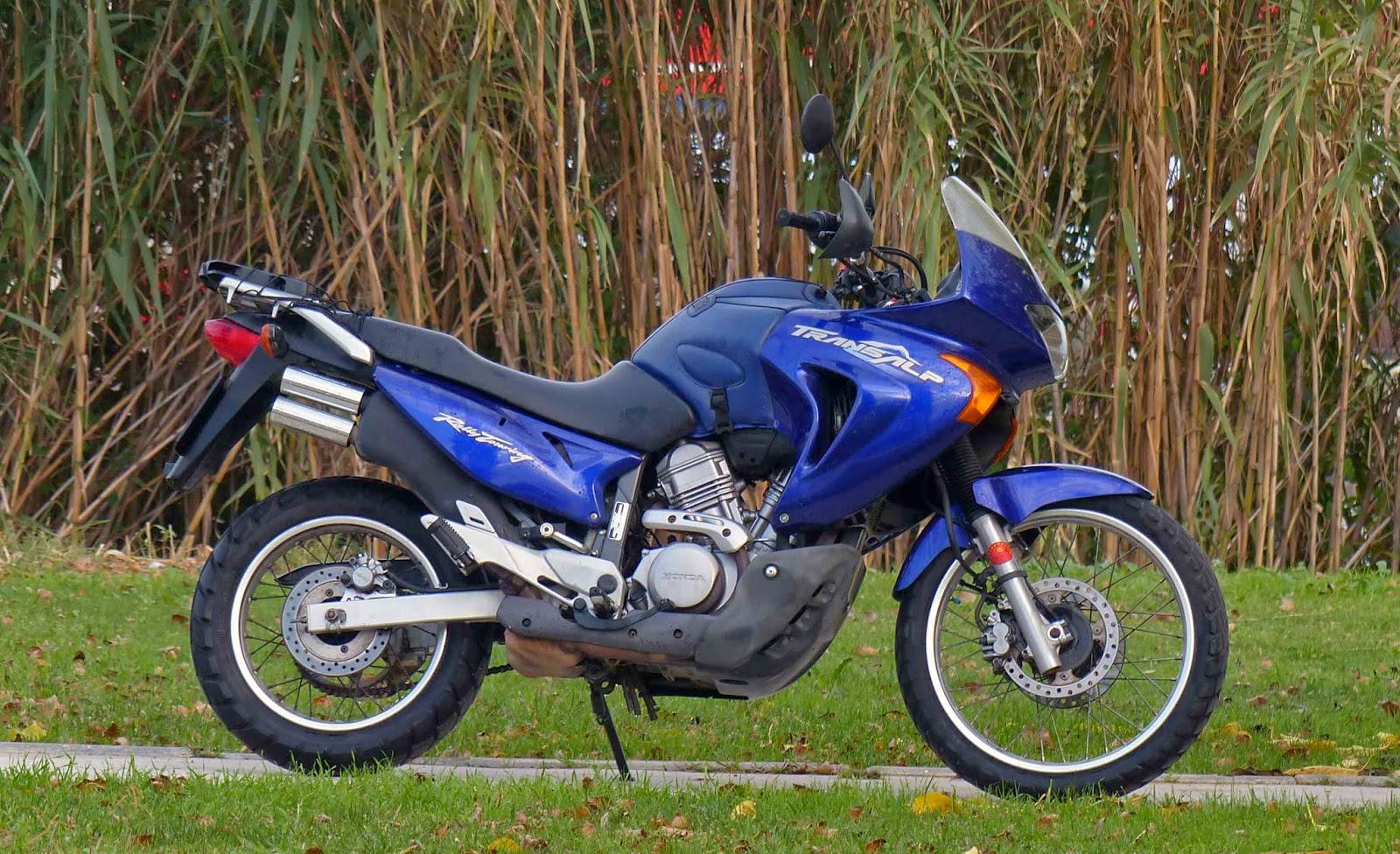

Honda XL600V Transalp: specs.
| Specifications | ||
|---|---|---|
| DIMENSIONS | Overall length | 2280 mm / 89,4 in |
| Overall width | 865 mm / 34,0 in – XL600VH- XL600VP 905 mm / 35,6 in – XL600VR- XL600VX | |
| Overall height | 1280 mm / 50,4 in – XL600VH- XL600VJ 1310 mm / 51,6 in – XL600VK- XL600VP 1300 mm / 51,2 in – XL600VR- XL600VX | |
| Seat height | 850 mm / 33,4 in | |
| Wheelbase | 1505 mm / 59,2 in | |
| Ground clearance | 225 mm / 8,9 in – XL600VH- XL600VJ 200 mm / 7,9 in – XL600VK- XL600VL 195 mm / 7,7 in – XL600VM- XL600VX | |
| Dry weight | 175 kg / 388 lbs – XL600VH- XL600VL 183 kg / 404 lbs – XL600VM- XL600VR 189 kg / 417 lbs – XL600VT- XL600VX | |
| Curb (wet) weight | 194 kg / 428 lbs – XL600VH- XL600VL 202 kg / 445 lbs – XL600VM- XL600VX | |
| FRAME | Type | Semi-double cradle (steel) |
| Front suspension, travel | 41 mm telescopic fork, 200 mm (7,87 in) | |
| Rear suspension, travel | Swingarm (Pro-Link) with mono-shock, 187 mm (7,36 in) Adjustable: spring pre-load | |
| Front tire size | 90/90-21 (54S) | |
| Rear tire size | 120/90 (130/80)-17M (64S) | |
| Front brake | Single disc, 276 mm, 2-piston caliper – XL600VH- XL600VT Double disc, 256 mm, 2-piston calipers – XL600VV- XL600VX | |
| Rear brake | Drum, 130 mm – XL600VH- XL600VL Single disc, 240 mm, 1-piston caliper – XL600VM- XL600VX | |
| Fuel capacity | 18,0 l / 4,75 US gal (including reserve – 3,5 l) | |
| Trail | 108 mm (4,25 in) | |
| Fuel economy | 5,0 – 6,0 l / 100 km | |
| ENGINE | Type | Water cooled 4-stroke |
| Cylinder arrangement | 2 cylinders 52°, V-twin | |
| Bore & Stroke | 75,0 x 66,0 mm | |
| Displacement | 583 cm³ (35,57 cu in) | |
| Compression ratio | 9.2:1 | |
| Valve train | Chain driven SOHC, 3 valves per cylinder | |
| Max. power | 50,3 hp (37,0 kW) / 8000 rpm | |
| Max. torque | 52,0 Nm (5,3 kg*m) / 6000 rpm | |
| 0 to 100 km/h | 5,6 sec | |
| Top speed | 164 km/h (102 mph) | |
| CARBURETION SYSTEM | Type | Carburetor, 2x Keihin CV, 34 mm |
| ID | ||
| DRIVE TRAIN | Clutch | Wet, multi-plate, cable operated |
| Transmission | 5-speed constant mesh | |
| Final drive | Chain | |
| Primary reduction | 1.888 | |
| Final reduction | 3.133 | |
| Gear ratio I II III IV V | 2.571 (XL600VH- XL600VR); 2.500 (XL600VT- XL600VX) 1.777 (XL600VH- XL600VR); 1.722 (XL600VT- XL600VX) 1.380 (XL600VH- XL600VR); 1.333 (XL600VT- XL600VX) 1.125 (XL600VH- XL600VR); 1.111 (XL600VT- XL600VX) 0.961 | |
| ELECTRICAL | Ignition | CDI – XL600VH- XL600VR Transistorized – XL600VT- XL600VX |
| Alternator | 310W at 5000 rpm | |
| Battery capacity | 12V-12Ah |
